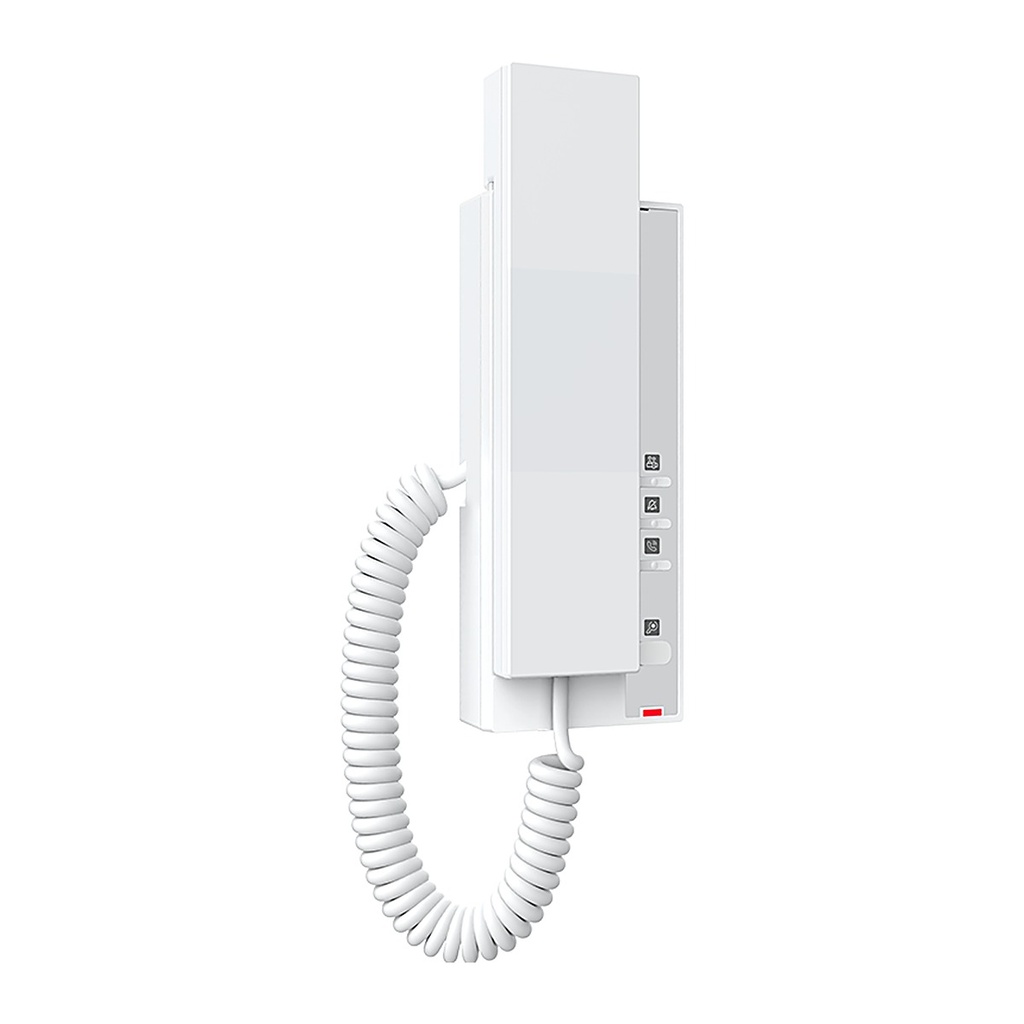

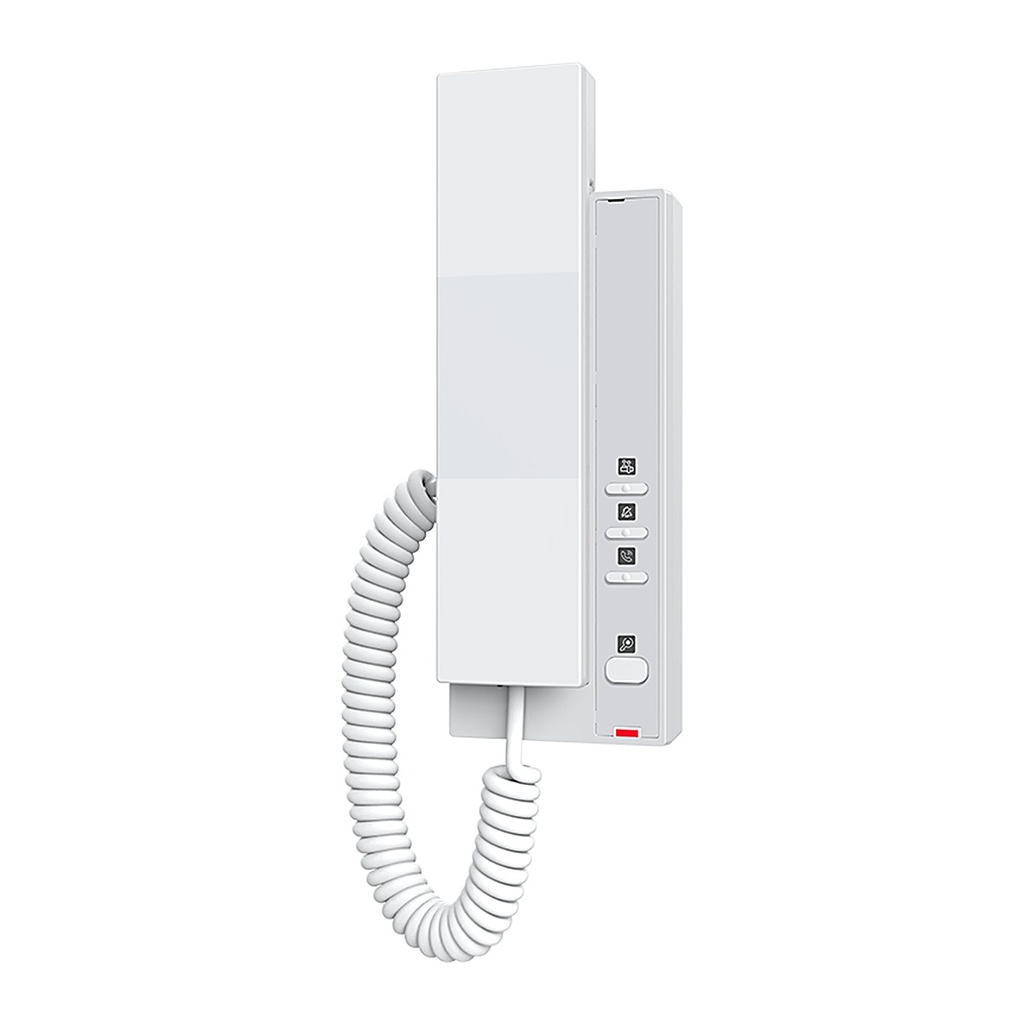

[i501W] Fanvil i501W SIP Audio Indoor Station with Handset, Wi-Fi 6, Remote Unlock

Fanvil i501W SIP Audio Indoor Station with Handset, Wi-Fi 6,

Fanvil i501W SIP Audio Indoor Station with Handset, Wi-Fi 6, Remote Unlock

Audio indoor station with magnetic handset
One-touch remote door unlocking for easy visitor access
2 SIP lines and 4 buttons
HD audio with G.722 and Opus wideband codecs
Built-in 1W speaker with AEC for full-duplex hands-free calls
Built-in dual-band 2.4G/5G Wi-Fi 6
Short-circuit input for connecting external devices
Desktop or wall-mounted installation

SIP Wi-Fi HD Voice Indoor Monitor Wireless

Ask on WhatsApp Quote for quantities

Delivery within 2–5 business days across Saudi Arabia
Warranty according to the manufacturer
Tax invoice with every order
Technical support before and after purchase

Not sure this model fits your setup? Read the buying guide

Documents

Fanvil_i501W_Datasheet.pdf

Overview of Fanvil i501W

The Fanvil i501W is a compact SIP audio indoor station for homes, villas, offices and hotels that need simple, reliable door communication. A magnetic handset gives private conversations with visitors, while the built-in 1W speaker with echo cancellation supports clear hands-free calls. One-touch remote unlocking lets users open the door instantly, and HD audio with G.722 and Opus keeps voices natural. With 2 SIP lines, a short-circuit input and desktop or wall installation, it adds built-in Wi-Fi 6 on 2.4G/5G for easy deployment where network cabling is not available.

Technical Specifications

General

Model	i501W
Type	SIP audio indoor station
Operating System	Linux
Application	Community, Hotel, Villa
Screen	No
Handset	Magnetic handset
Buttons	4
Body Material	ABS

Audio

Speaker	1W
Hands-free	Full-duplex with AEC
HD Audio	Yes
Wideband Codecs	G.722, Opus
Narrowband Codecs	G.711A/U, G.723.1, G.726, G.729AB, iLBC

Intercom Features

SIP Lines	2
Protocol	SIP 2.0 over UDP/TCP/TLS
DTMF	In-band, RFC2833, SIP Info
Remote Door Unlock	Yes
Do Not Disturb	Yes, user-defined schedule
Custom Ringtones	Yes
Video	No (audio only)

Interfaces & Network

Short-circuit Input	1
Ethernet	10/100 Mbps adaptive
Wi-Fi	2.4G/5G, Wi-Fi 6

Power

Power Supply	DC 5V/1A adapter
Power Consumption	0.9–1.7W

Physical & Environment

Installation	Desktop / Wall-mounted
Dimensions	195×181×30 mm
Operating Temperature	0℃ to 50℃
Storage Temperature	-20℃ to 50℃
Humidity	10%–90%

Source: Fanvil official website and datasheet. Specifications are subject to change by the manufacturer.
