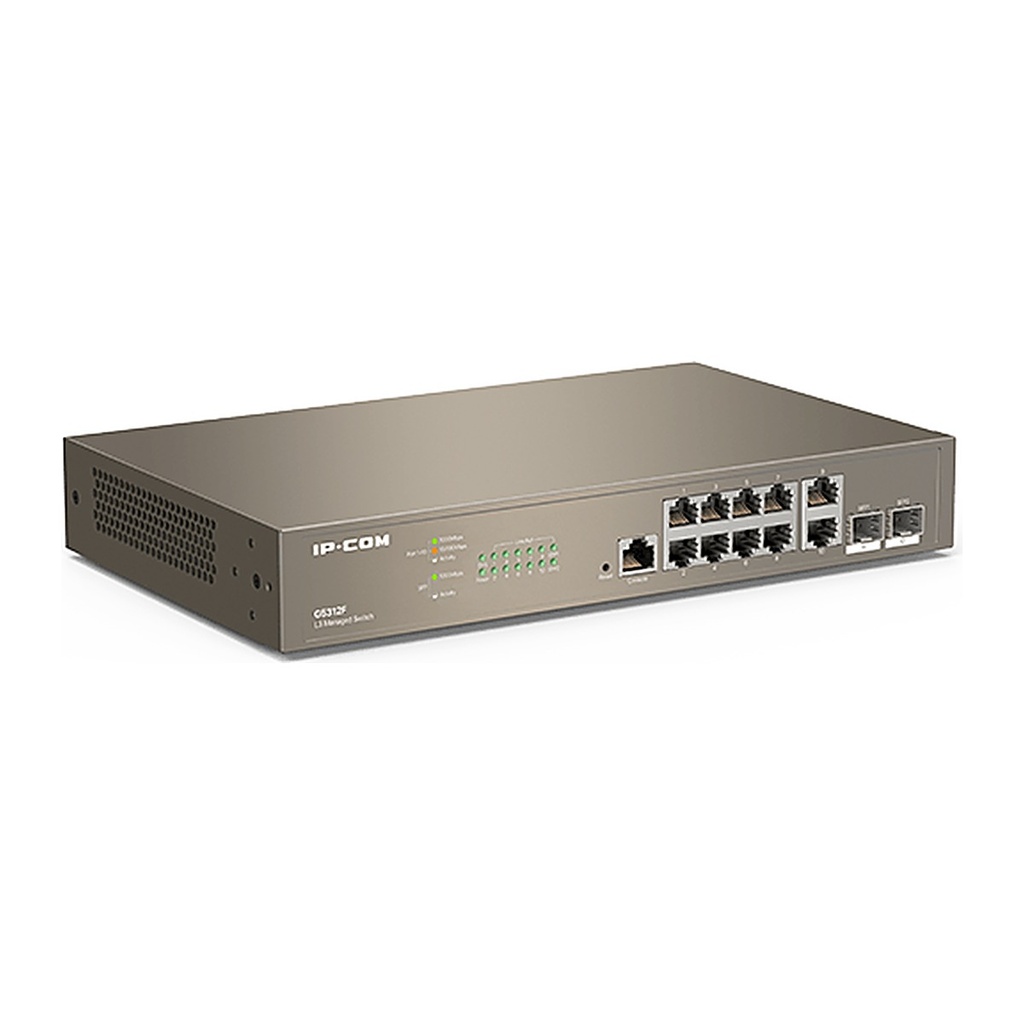

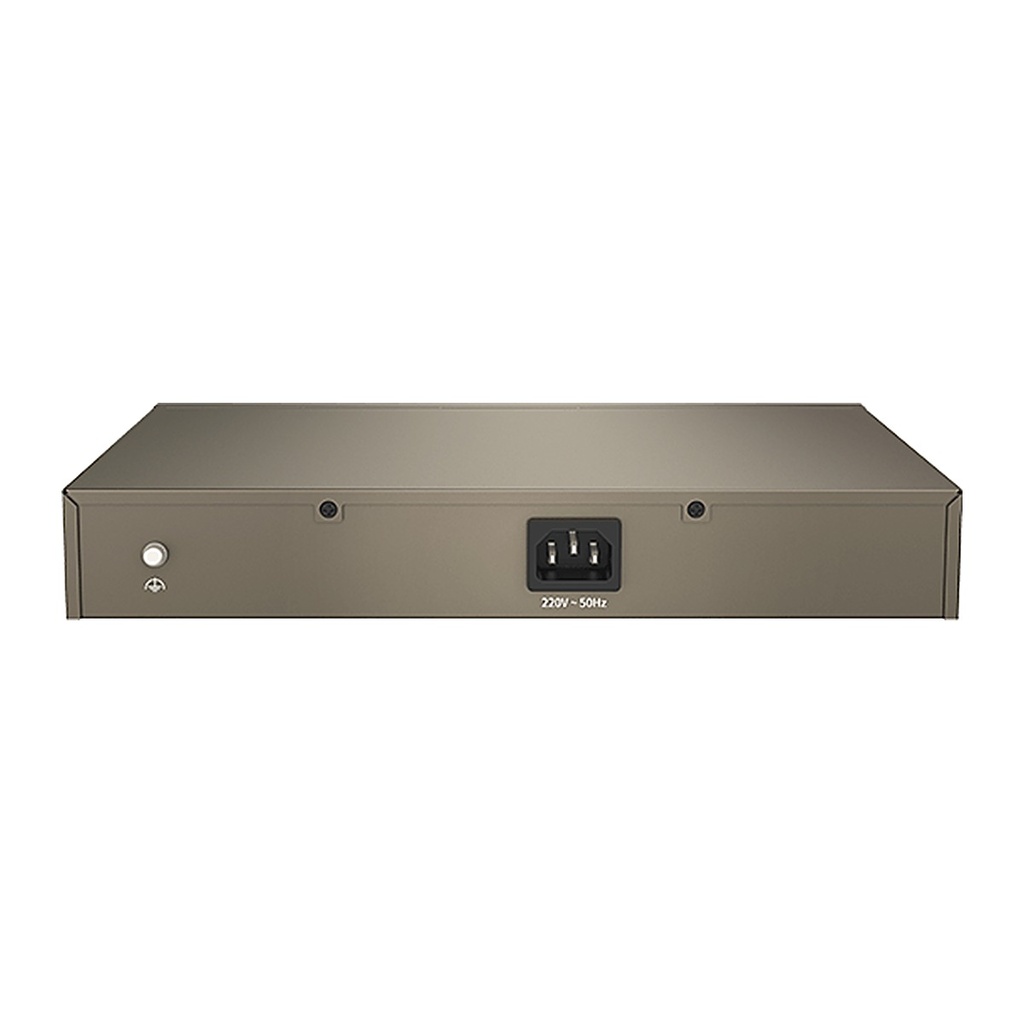

[G5312F] IP-COM G5312F 12-Port Gigabit L3 Cloud Managed Switch, 10 GE + 2 SFP, VLAN Routing

IP-COM G5312F 12-Port Gigabit L3 Cloud Managed Switch, 10 GE + 2 SFP, VLAN Routing

10 x Gigabit Ethernet ports + 2 x Gigabit SFP ports
Layer 3: VLAN routing, IPv4 static routing, DHCP Server/Relay
24 Gbps switching capacity, 16K MAC table
STP/RSTP/MSTP, LACP, IGMP Snooping and ACL
IMS cloud management with topology view
Web, Console, Telnet and SNMP management

IP-COM

Ask on WhatsApp Quote for quantities

Delivery within 2–5 business days across Saudi Arabia
Warranty according to the manufacturer
Tax invoice with every order
Technical support before and after purchase

Not sure this model fits your setup? Read the buying guide

Technical Specifications – G5312F

Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
LED indicators	1 Link/Act LED per port; 1 Power LED per device; 1 SYS LED per device
Interfaces	10 x 10/100/1000Base-T Ethernet ports (Data/Power); 2 x 1000Base-X SFP ports (Data)
Lightning protection	Port: 6kV; Power: 6kV
Forwarding mode	Store-and-forward
Switching capacity	24Gbps
Packet forwarding rate	17.9Mpps
Buffer	12Mbit
MAC address table	16K
Input voltage	100-240V AC, 50/60Hz
Dimensions	294 mm x 179.6 mm x 44 mm (L x W x H)
Operating environment	Operating temperature: 0°C to 40°C; Storage temperature: -40°C to 70°C; Operating humidity: 10% to 90%RH, non-condensing; Storage humidity: 5% to 90%RH, non-condensing
Certificates	CCC, FCC, CE, RoHS
Security features	Supports ARP receiving limit; Supports unknown MAC address discard; Supports DoS attack defense; Supports 802.1x security authentication; Supports RADIUS authentication
VLAN	Supports IEEE 802.1Q VLAN; Supports VLAN Layer-3 interfaces; Supports three port modes: Access, Trunk and Hybrid
DHCP	Supports DHCP Server; Supports DHCP Relay; Supports DHCP Snooping; Supports Option 82 policy configuration
L3 routing	Supports VLAN-based routing; Supports IPv4 static routing; Supports static ARP
Port aggregation	Supports static aggregation; Supports LACP dynamic aggregation
Spanning tree	Supports IEEE 802.1d STP; Supports IEEE 802.1w RSTP; Supports IEEE 802.1s MSTP; Supports edge port; Supports BPDU statistics
Multicast	Supports IGMP Snooping V1/V2/V3; Supports port fast leave
Port mirroring	Supports N:1 port mirroring
QoS	Supports SP (Strict Priority); Supports SWRR (Simple Weighted Round Robin); Supports WRR (Weighted Round Robin); Supports 802.1p port trust mode; Supports DSCP port trust mode; Supports up to 8 queue QoS mapping
ACL	Supports MAC ACL; Supports IP ACL
Loading and upgrade	Supports FTP/TFTP/HTTP upgrade; Supports configuration import and export
Cloud management	Supports configuration delivery from IMS cloud platform; Supports log reporting and fault detection; Supports remote maintenance: reboot, backup, upgrade
Local visualization management	Supports router, switch, AP and IP camera discovery; Supports automatic topology generation; Supports online/offline status detection for devices; Supports remotely rebooting IP cameras
Management and maintenance	Supports Telnet configuration; Supports Console port configuration; Supports SNMP V1/V2/V3; Supports web management and maintenance; Supports Ping/Tracert detection

Source: IP-COM official website. Specifications are subject to change by the manufacturer.

PRACTICAL ANSWERS

Network planning questions

Should I choose a router, a switch or an access point?

Start with the task: connecting networks, adding wired device ports, or providing wireless coverage. A single installation may need more than one device type. Share a site diagram and device list so the proposed roles and connections are clear.

Why is wireless coverage weak in some rooms?

Check the access point location, building layout, obstacles and the number of active devices. Measure coverage where people actually work before choosing extra equipment; changing the internet package alone may not address a coverage problem.

How do I select a switch for powered network devices?

List the devices to be connected and check each device’s power requirements against the switch’s per-port capability and total documented power budget. Also review uplink capacity and reserve ports for the expansion you actually expect.

Can the guest network be separated from business devices?

Define which devices and services guests should be able to reach, then check whether the router, switch and access points support the required separation. Test the resulting access rules; a different wireless network name alone is not the acceptance test.

What information helps plan a network upgrade?

Provide floor plans, current equipment models, internet connections, cabling details and peak device counts. Describe the applications that matter most and the observed problem, such as disconnections or slow local file access.

How should network performance be checked after installation?

Agree on the locations and representative workloads to test, then record wired and wireless results separately. Check connectivity, coverage and access rules during normal use, and retain a diagram and configuration backup for support.
