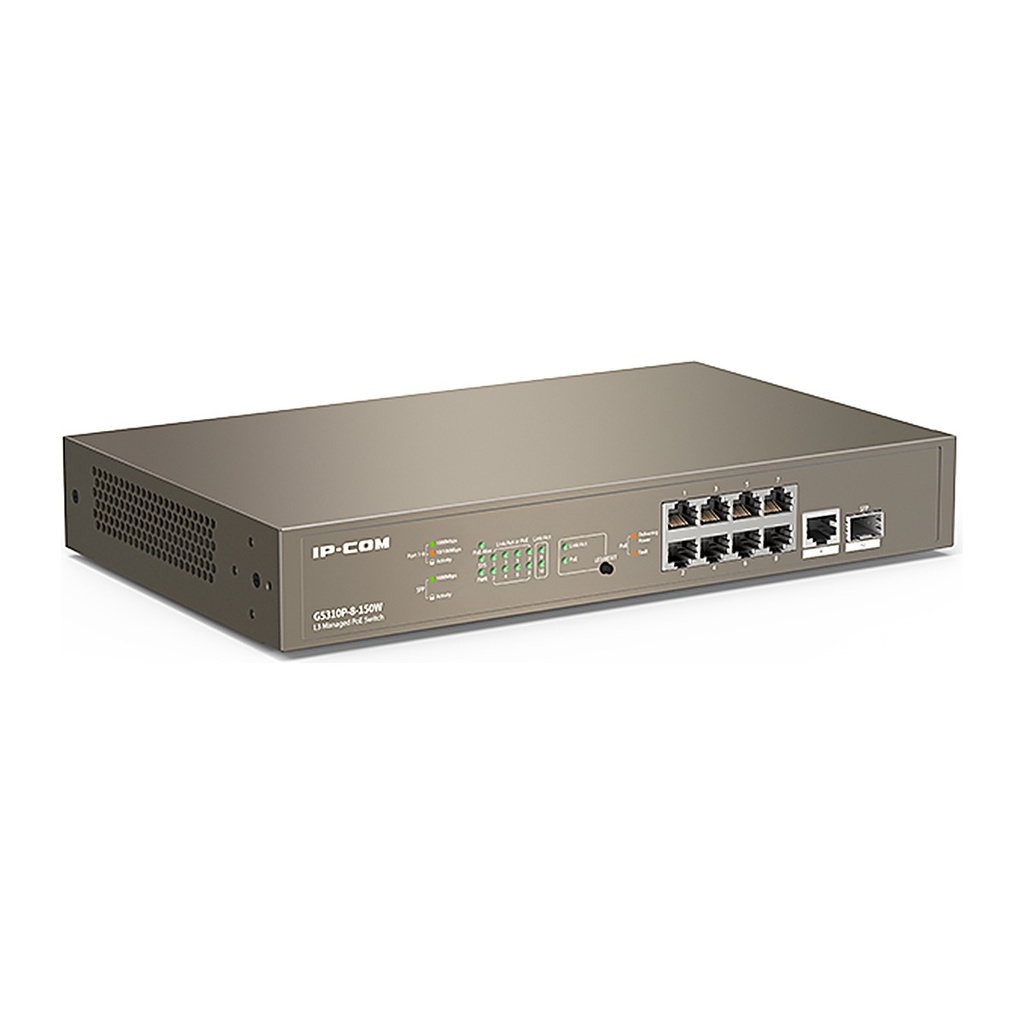

[G5310P-8-150W] IP-COM G5310P-8-150W 10-Port Gigabit L3 Managed PoE Switch, 8 PoE + SFP, Cloud

IP-COM G5310P-8-150W 10-Port Gigabit L3 Managed PoE Switch, 8 PoE + SFP, Cloud

8 x Gigabit PoE ports + 1 x Gigabit port + 1 x SFP port
Layer 3 features: inter-VLAN routing, IPv4 static routing, DHCP server/relay
STP/RSTP/MSTP, LACP aggregation and IGMP Snooping
Security: 802.1x, RADIUS, DoS defense and MAC/IPv4 ACL
PoE priority, scheduling and over-temperature protection
IMS cloud management with ONVIF camera discovery and remote reboot
128 Gbps switching capacity, 12 Mbit buffer

IP-COM

Ask on WhatsApp Quote for quantities

Delivery within 2–5 business days across Saudi Arabia
Warranty according to the manufacturer
Tax invoice with every order
Technical support before and after purchase

Not sure this model fits your setup? Read the buying guide

Technical Specifications – G5310P-8-150W

Network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at
LED indicators	1 Link/Act or PoE LED per port; 1 Link/Act mode-switch LED; 1 PoE mode-switch LED; 1 PoE Max LED; 1 Power LED; 1 SYS LED
Fixed ports	8 x 10/100/1000Base-T Ethernet ports (Power & Data); 1 x 10/100/1000Base-T Ethernet port (Data); 1 x 1000Base-X SFP port (Data)
Lightning protection	Port: 6 kV; Power supply: 6 kV
Forwarding mode	Store-and-forward
Switching capacity	128 Gbps
Packet forwarding rate	14.9 Mpps
Switching buffer	12 Mbit
MAC address table	16K

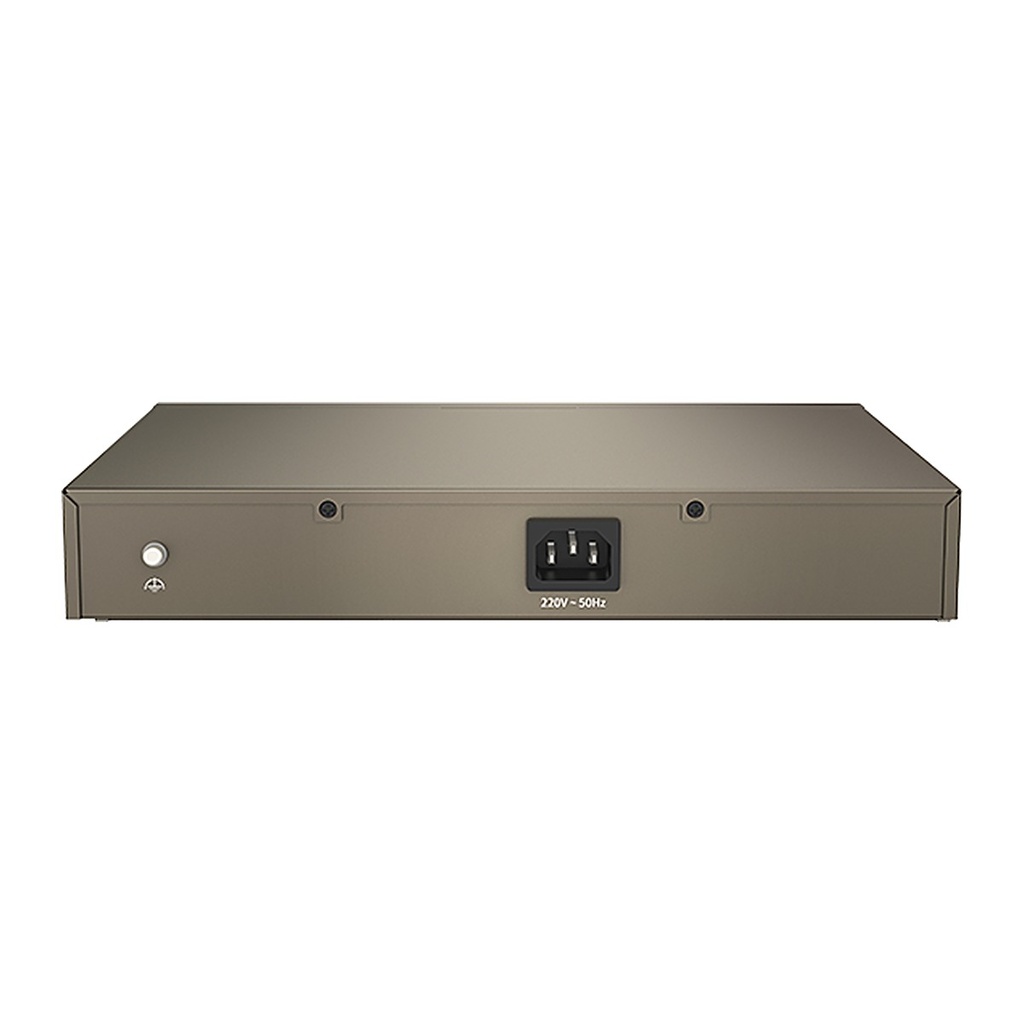

Input voltage	100–240V AC, 50/60Hz
Dimensions (L x W x H)	294 x 179.6 x 44 mm
Environment	Operating temperature: 0°C to 40°C; Storage temperature: -40°C to 70°C; Operating humidity: 10%–90% RH, non-condensing; Storage humidity: 5%–90% RH, non-condensing
Certifications	CCC, FCC, CE, RoHS
PoE power management	Per-port PoE settings and power priority settings; PoE over-temperature protection; PoE time-schedule management; Smart management and detection of PDs (port status, power allocation, PD status)
Security features	ARP receiving limit; Unknown MAC discarding; DoS attack defense; 802.1x security authentication; RADIUS authentication
VLAN	IEEE 802.1Q VLAN supported; VLAN Layer 3 virtual interfaces supported; Access, Trunk and Hybrid port modes supported
DHCP	DHCP server; DHCP relay; DHCP Snooping; Option 82 policy supported
Layer 3 routing	Inter-VLAN routing; IPv4 static routing; Static ARP
Port aggregation	Static aggregation supported; LACP dynamic aggregation supported
Spanning tree	IEEE 802.1d STP; IEEE 802.1w RSTP; IEEE 802.1s MSTP; Edge ports; BPDU statistics
Multicast	IGMP Snooping V1/V2/V3; Port fast leave
Port mirroring	N:1 port mirroring supported
QoS	SP (Strict Priority); SWRR (Simple Weighted Round Robin); WRR (Weighted Round Robin); 802.1p port trust mode; DSCP port trust mode; Up to 8-queue QoS mapping
ACL	MAC-based ACL supported; IPv4-based ACL supported
Cloud management	Remote configuration delivery via IMS web cloud platform & IMS app (firmware update); Log reporting and fault detection; Remote maintenance: reboot, backup, upgrade (firmware update)
Local visualization management	LLDP-based discovery of routers, switches, APs and other network devices; ONVIF-based IP camera discovery; Automatic topology generation; Online/offline device detection; Remote camera reboot
Loading and upgrade	FTP/TFTP/HTTP upgrade supported; Configuration import/export supported

Source: IP-COM official website. Specifications are subject to change by the manufacturer.

PRACTICAL ANSWERS

Network planning questions

Should I choose a router, a switch or an access point?

Start with the task: connecting networks, adding wired device ports, or providing wireless coverage. A single installation may need more than one device type. Share a site diagram and device list so the proposed roles and connections are clear.

Why is wireless coverage weak in some rooms?

Check the access point location, building layout, obstacles and the number of active devices. Measure coverage where people actually work before choosing extra equipment; changing the internet package alone may not address a coverage problem.

How do I select a switch for powered network devices?

List the devices to be connected and check each device’s power requirements against the switch’s per-port capability and total documented power budget. Also review uplink capacity and reserve ports for the expansion you actually expect.

Can the guest network be separated from business devices?

Define which devices and services guests should be able to reach, then check whether the router, switch and access points support the required separation. Test the resulting access rules; a different wireless network name alone is not the acceptance test.

What information helps plan a network upgrade?

Provide floor plans, current equipment models, internet connections, cabling details and peak device counts. Describe the applications that matter most and the observed problem, such as disconnections or slow local file access.

How should network performance be checked after installation?

Agree on the locations and representative workloads to test, then record wired and wireless results separately. Check connectivity, coverage and access rules during normal use, and retain a diagram and configuration backup for support.
